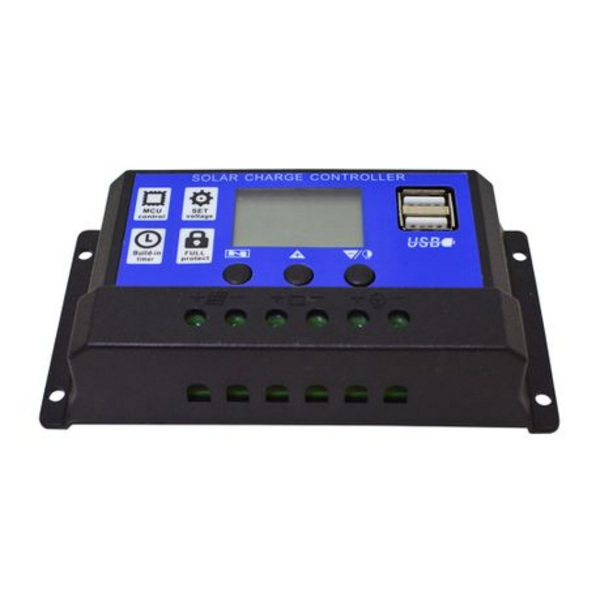

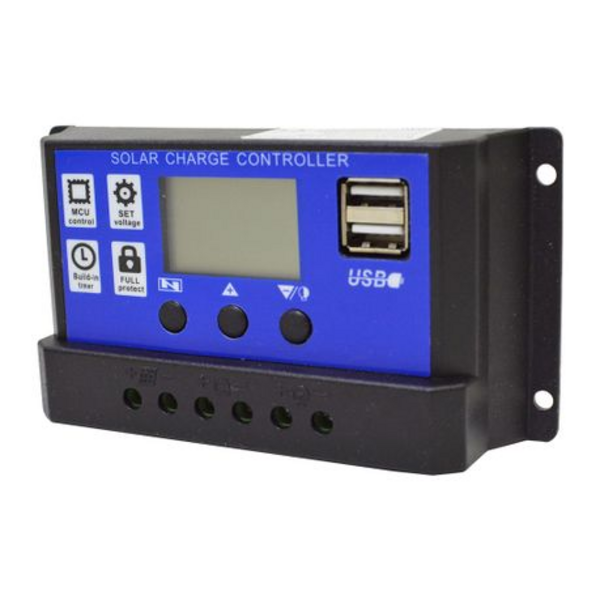

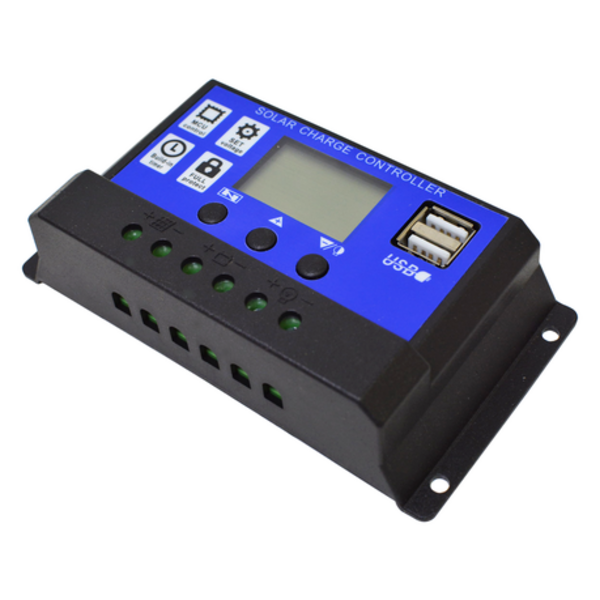

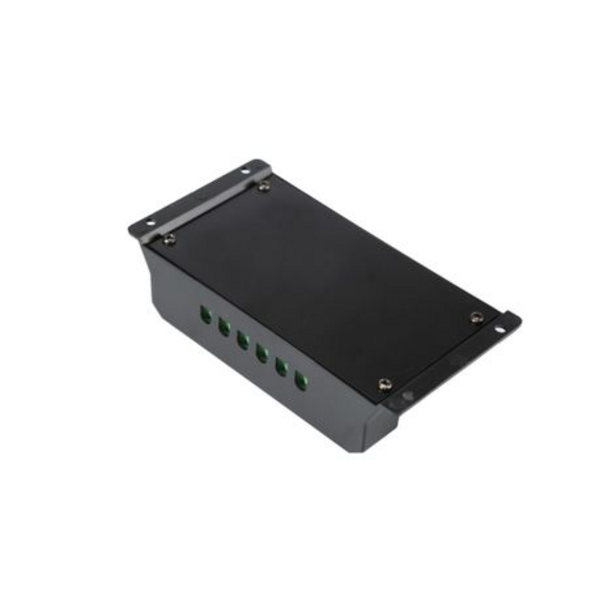

30A Solar Charge Controller

Description

This 30A Solar Charge Controller is designed for 12V and 24V Lead-Acid, Gel and AGM Deep Cycle batteries. It automatically detects the type of battery used in your set up and is plug-an-play (internal values can be adjusted manually).

Features:
– 30A Solar Charge Controller with 3-stage PWM charge management
– Supported battery types: Lead-Acid, Gel, AGM Deep Cycle batteries, 12V and 24V
– Dual USB output ports (5V, 2.5A)- compatible with multiple digital devices
– LCD display – voltage, status, time, load, output, charge & more
– Suitable for home, industrial & commercial purposes
– Safe (CE-marked), easy to install & operate

Multiple electronic protection:
– Open-circuit protection
– Short-circuit protection
– Over-load protection
– Reverse protection
– Dual Mosfet reverse current protection

How to install:
Wiring steps
– Screw the adjustment screw anti-clockwise until the plates move down
– Insert the wire into the new opening between the plate and the “top” of the terminal hole, not underneath it
– Screw the adjuster clockwise. The plate will move upwards, therefore squashing the wire in the terminal hole

Installation steps

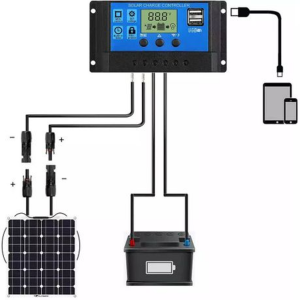

– Connect the system in the order: battery, then load, then PV array
– Disconnect the system in the reverse order: PV array, then load, then the battery

Notes:
– Ensure your battery has enough voltage for the controller to recognize the battery before the first installation
– The working temperature of this controller is -35°C to 60°C
– Please keep the controller in a cool & well-ventilated place to maintain good heat dissipation

Product specifications:
– Type: PWM-Type Solar Charge Controller, 30A, 12V/24V
– Battery type: DC 12V/24V (auto-detect)
– Charge current: 30A
– Discharge current: 30A
– USB output: 5V/2.5A maximum
– Maximum solar input: 23V/46V
– Equalization: sealed 14.4V / gel 14.2V / flooded 14.6V
– Float charge: 13.7V/27.4V
– Discharge stop: 10.7V/21.4V
– Discharge reconnect: 12.6V/25.2V
– Operating temperature: -35°C to 60°C
– Product dimensions: 133.5 x 70 x 35mm
– Weight: 165g

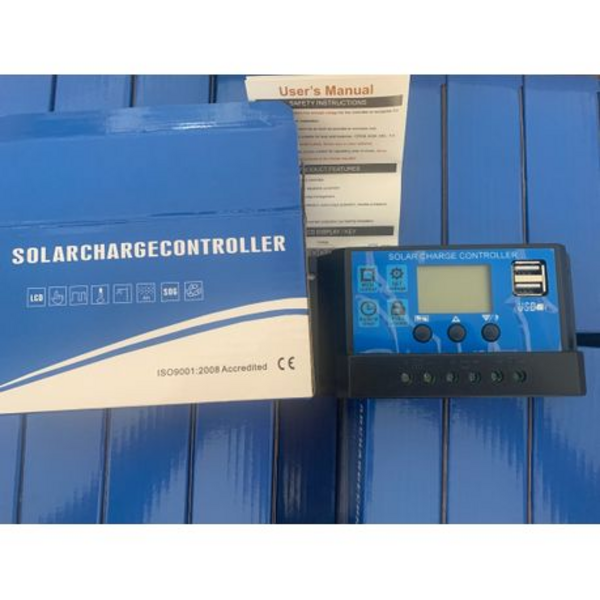

What’s in the box
1 x 30A Solar Charge Controller
